Understanding the Structure of a Blast Furnace Three-Ring Cone Scrubber

The blast furnace three-ring cone scrubber is a high-tech wet-type device for removing dust and cooling gases that is used in modern ironworks. This flexible scrubber is made up of three concentric rings and a center cone that can be moved up and down. This creates changeable annular gaps that let blast furnace gas pass through easily. This equipment keeps the right differential pressure while removing a huge amount of dust, often lowering particulate levels below 5mg/Nm³. It does this by hydraulically changing the throat areas on the fly. Understanding this technology is now necessary for procurement managers who want to find reliable gas cleaning options that keep operations running smoothly and don't harm the environment.

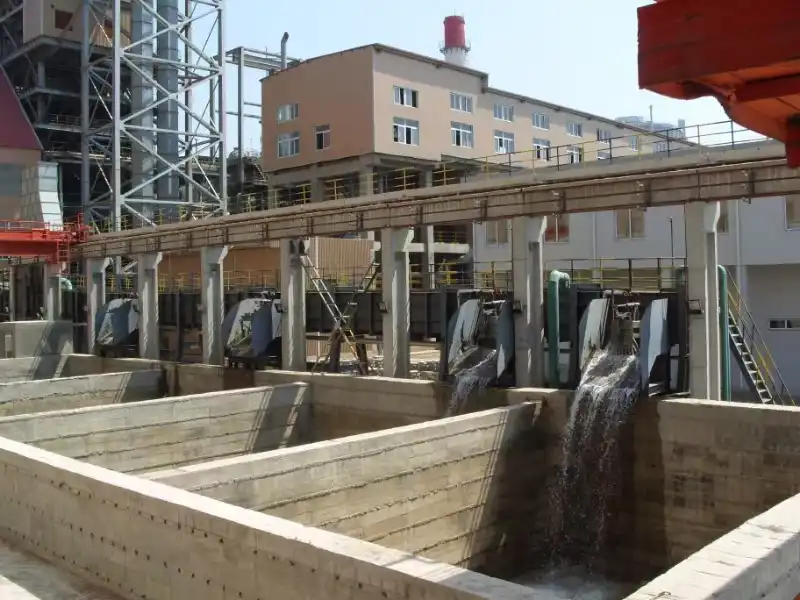

What is a Blast Furnace Three-Ring Cone Scrubber?

The blast furnace three-ring cone scrubber is a special gas cleaning tool made for blast furnace environments. It cleans high-volume gas streams by removing dust and other pollutants. Because it is located in the Gas Cleaning Plant (GCP), this equipment solves important problems that regular fixed Venturi scrubbers can't.

Defining the Core Purpose and Position

This wet scrubbing system does two things at once: it controls the top pressure of the furnace and collects fine dust particles from the exhaust gases. Unlike traditional designs with set throats, this scrubber's adjustable feature lets it adapt flexibly to changing gas volumes and pressures that happen in modern blast furnaces. The equipment is placed after the main dust collectors but before the Top Gas Recovery Turbines (TRT). It keeps the turbine blades from wearing down and makes sure the gas meets strict operating standards for cleanliness.

The Unique Three-Ring Design Structure

Its circular ring design is what makes it structurally unique. Around the center movable cone are three perfectly machined rings that make annular tunnels that gas must move through. When gas from the blast furnace goes into the scrubber, it comes into touch with water drops that are spread out over many contact zones made by these rings. Hydraulic lifters move the cone up and down, which changes the gap width between the rings and the cone's surface. This changes the flow resistance right away. This design makes a lot of turbulence zones that increase the surface area where gas and water touch. This makes it easier for the burner to catch more dust without causing too many pressure drops, which would slow it down.

Material Engineering and Construction Standards

Quality of manufacturing has a direct effect on how long scrubbers last and how well they work. Most of the time, wear-resistant alloy steel or 316L stainless steel are used as the main material for the core cone and ring sections. Abrasive dust streams moving quickly need extra protection, so makers put Stellite overlays or ceramic coats on surfaces that are likely to get worn down quickly. These processes raise the hardness to between HRC 55 and 62, which greatly increases the life of the component. The structural designs follow the rules set by ASME Section VIII for pressure vessels. This makes sure that the structures stay strong even when the difference pressure reaches 150kPa. Quality makers use ISO 9001 management systems all the way through the manufacturing process. This makes sure that the standards for dimensions are always the same, and ultrasonic and radiographic testing methods make sure that the welds are strong.

How Does a Three-Ring Cone Scrubber Work in Blast Furnaces?

Procurement experts can figure out how well this technology fits their plant's needs by understanding operating mechanics. The scrubber has to work within strict limits that need careful engineering thought.

Critical Operating Parameters and Conditions

The gas from the blast furnace that goes into the scrubber is usually up to 250°C hot and has dust amounts of 10–20g/Nm³. The equipment has to work in these tough conditions all the time while keeping the pressure control accuracy within ±2kPa. Gas makeup changes based on burner load and operating phase. It includes carbon monoxide, hydrogen, and water, all of which are corrosive. During load lowering events, flow dynamics change quickly, so the scrubber needs to act within 1.5 to 2 seconds to stop pressure imbalances that could make furnace operations less stable. It's still cost-effective to use 0.3 to 0.6L of water per cubic meter of gas treated, which is a lot less than what standard venturi systems use.

Comparison with Alternative Gas Cleaning Technologies

The blast furnace three-ring cone scrubber is better at getting rid of fine particles than cyclone separators because it can catch particles smaller than 2 microns that cyclones can't separate well. Unlike set venturi scrubbers, the movable throat design gives you more options and doesn't limit your operations when the gas volume changes. It's about the same how well wet electrostatic precipitators remove dust, but they cost a lot more and use a lot more electricity. The design with three rings is a good compromise because it cleans very well while using little energy and not needing much upkeep. When gravity dust catchers are added upstream, they form cleaning stages that work together to get rid of both large and small particles. The scrubber's strong washing action takes care of the fine dust first.

Maintenance Considerations and Service Life Factors

Regular upkeep checks the wear on the cone coating, the response of the hydraulic actuator, and the functioning of the internal spray nozzle. Based on the gas abrasiveness and coating quality, cone systems usually last between 3 and 5 years before they need to be replaced or re-coated. To stop scaling, you need to pay attention to the quality of the flowing water. The amount of suspended solids should stay below 50 mg/L to avoid ring surface layers that slow things down. Scaling can be controlled by internal spray tubes that clean themselves, along with acid cleaning or high-pressure water washing that happens during planned shutdowns. When choosing equipment partners, procurement professionals should look at how well suppliers can support coating repair services and the availability of extra parts.

Benefits and Efficiency of Blast Furnace Three-Ring Cone Scrubbers

Because this technology is good for both the economy and the environment, steel companies that are facing stricter pollution rules and rising costs are becoming more and more interested in it.

Environmental Compliance and Dust Collection Performance

New pollution guidelines in the US and around the world require particulate levels to be much lower than the old limits. Three-ring cone scrubbers always get the cleanliness of the exit gas to be below 5mg/Nm³, which meets EPA standards and keeps downstream equipment from wearing out. This level of performance protects the blades of TRT turbines, which means that repair times are longer and expensive unexpected breakdowns are avoided. At the same time, the wet cleaning process cools gas from temperatures above 200°C to levels that can be used in energy recovery systems. This captures thermal energy that would have been lost otherwise. Noise levels stay below 85dB, which addresses safety issues at work and keeps good relationships with neighbors near urban installations.

Economic Advantages and Cost-Effectiveness Analysis

Low water-to-gas ratios and middling pressure drop traits keep operational costs low by limiting the amount of power used by fans. This design of the flexible throat keeps the furnace's efficiency high in all of its operating modes, unlike set systems that lose performance when they aren't working as planned. Lower lifetime costs are achieved with less upkeep compared to fixed venturi systems, which need to be replaced more often because the throat wears down. This is true even if the initial capital investment is higher. When gas cleanliness regularly meets turbine maker standards, energy recovery through TRT systems becomes more reliable. This increases the overall thermal efficiency of the plant and lowers the need to buy power from outside sources.

Performance Metrics Compared to Alternative Technologies

Industry research shows that blast furnace three-ring cone scrubbers are better than cyclone separators at getting rid of dust (about 85% effective for similar particle sizes vs. 99.5% for particles above 2 microns). Wet electrostatic precipitators clean gas just as well as dry ones, but dry ones use 30–40% less energy per cubic meter of gas cleaned. The design that can be adjusted keeps working well even when the gas volume changes by 30 to 40 percent. With set venturi systems, efficiency drops by more than 15 percent when flow rates aren't designed to happen. These measures put the technology in a good position for large-scale businesses that need to be reliable and flexible in order to make money in the long run.

Choosing the Right Blast Furnace Scrubber: Comparison and Procurement Insights

To choose the right gas cleaning tools, you need to carefully compare the technical specs with the needs of the business and the supplier's abilities.

Technical Specifications Matching Furnace Scale

The size of the cleaner is directly related to the size of the blast furnace. Facilities with furnaces that have an internal volume of more than 2,500 m³ create gas flows that need scrubbers with throat widths of at least 1,200 mm. When the process is smaller than 1,000m³, smaller versions can be used while still cleaning well. Specifications for buying things should clearly state the input gas's temperature range, dust concentration, changing flow rate, and chemical make-up. This will help makers design equipment that is the right size. When adding scrubbers to current plants that don't have a lot of room or have special process needs, customization choices become important. Suppliers who offer engineering help during the creation of specifications add a lot of value because they stop expensive mismatches between what the equipment can do and how it is actually used.

Evaluating Manufacturer Credentials and Quality Indicators

Reliable providers show they can make things by having licenses, reference sites, and a lot of technical depth. When you get pressure tank approval from ASME, you can be sure that the structure meets safety standards. Having an ISO 9001 quality management certification means that the producing process is controlled in a planned way. Reference lists that show good installations at facilities of the same size and use give you faith in the performance that has already been proven. Engineering teams that know a lot about blast furnaces can predict problems with merging and come up with answers ahead of time. Precision machining centers, automatic welding systems, and full testing powers are used in factories to make equipment that is more reliable and accurate in terms of size. When evaluating possible suppliers, people in charge of buying things should ask to see tours of the facilities or thorough paperwork on how the products are made.

After-Sales Support and Long-Term Partnership Considerations

How well blast furnace three-ring cone scrubber equipment works over many years depends a lot on how well the seller supports it. Full after-sales services should include overseeing the installation, teaching users how to use the product, helping to improve performance, and quick expert support during problems. When parts need to be replaced, long outages can be avoided by having spare parts available with reasonable wait times. Coating repair services make equipment last longer and cost less than replacing all of its parts. When things go wrong quickly, suppliers with area service centers or approved service networks can help more quickly. Long-term relationships with equipment makers make it easier to keep improving by letting you use practical feedback to make design changes for future projects or plant expansions.

Installation, Operation, and Optimization of Three-Ring Cone Scrubbers

When installed and managed correctly, the return on investment is maximized and efficiency risks are kept to a minimum.

Installation Best Practices and Site Preparation

A good footing plan is the first step to a successful installation. The foundation should be able to hold the weight of the equipment plus the water inventory during operation. The structural supports must be able to handle the thermal growth that comes from changing temperatures without putting too much stress on the scrubber case to be out of line. To keep stress from building up at tip connections, piping connections need to be carefully thought out in terms of thermal expansion loops and vibration separation. For the hydraulic actuator to move the cone smoothly along its journey range, it needs to be perfectly aligned. When wiring control systems, it's important to follow the manufacturer's instructions to the letter, paying special attention to how to ground the systems so that monitor signals don't get messed up. As the site is being prepared, it should be checked that there are enough spaces for future maintenance access, such as crane access for removing large parts if repairs need to be done.

Operational Parameter Optimization Techniques

To get the best results, you need to tune a number of factors that can be changed. Hydraulic valve control algorithms should find a balance between how quick they are and how much wear they cause by hunting. The water spray strength and design of distribution need to be improved so that all the rings' surfaces are completely wet without using too much water. Monitoring is needed to keep the pH, hardness, and amount of suspended solids in recirculating water treatment systems within the limits needed to avoid scaling or rust. Differential pressure setpoints should match the needs of the furnace's operation while still keeping the right level of cleaning power. Modern installations have automated tracking systems that keep an eye on performance indicators all the time and let workers know when something isn't right so they can fix it before it gets worse. Data logging lets you look at patterns that show how performance is slowly getting worse, which leads to preventative maintenance.

Troubleshooting Common Operational Challenges

Drops in performance are often caused by a clogged spray tip, worn-out cone coating, or a broken hydraulic actuator. Systematic testing methods are the best way to get to the bottom of problems. Spray nozzle cleaning needs to be done while the system is shut down every so often, but workers can figure out if a nozzle is blocked by seeing unusual differential pressure patterns or higher temperatures in the exit gas. As the system adjusts to changes in throat geometry, coating wear shows up gradually by raising the amount of control action for the actuator. Problems with hydraulic systems usually show up as slow reaction times from the pressure control or erratic cone placement. Keeping detailed repair logs helps find trends that can tell you when a part will fail before something terrible happens. When looking at equipment sources, procurement managers should make sure that the professional support from suppliers includes repair help and the ability to do diagnostics remotely.

Conclusion

The blast furnace three-ring cone scrubber is very good at getting rid of dust and gives you more options for how it works than fixed-throat designs. Its shape can be changed to adapt to changing gas conditions. This keeps the furnace pressure fixed and protects equipment further downstream from wearing out. Environmental compliance is possible by consistently removing particles below 5mg/Nm³, meeting strict pollution standards, and helping to restore energy through TRT systems. When procurement professionals are looking at gas cleaning options, they should give more weight to providers who offer strong technical support, proven manufacturing quality, and full service after the sale. The technology strikes a good mix between performance, dependability, and lifecycle economics, making it a top choice for modern ironmaking plants that want to make long-lasting changes to their operations.

FAQ

What makes three-ring designs more efficient than single-ring configurations?

The multi-ring structure creates many swirling zones that greatly increase the surface area where gas and water can touch each other. This longer contact time lets more dust particles be captured while spreading the pressure drop over several stages instead of putting all the resistance in one tight spot. The end result is better at getting rid of dust while using less energy overall than single-ring options.

How frequently does routine maintenance need scheduling?

Typical maintenance times range from checking spray nozzles and hydraulic systems every three months to doing full checks once a year that include measuring the thickness of the layer. Every three to five years, the cone is re-coated, but this depends on how rough the gas is and how good the first covering was. Maintenance on a water treatment system is based on the results of chemical tracking. Cleaning processes are based on the conditions of the recirculating water rather than set plans.

Can this scrubber adapt to non-standard blast furnace configurations?

Manufacturers can design scrubbers to work in a wide range of settings because they can be customized. Making changes to the design can help with problems like limited space, odd gas mixtures, or integrating with older equipment. Getting sources involved early on in the planning process makes sure that unique solutions meet specific needs without affecting basic performance.
