When Should You Replace High Furnace Refractory Linings?

When you make a high furnace body lining replacement service is very important for keeping your business running smoothly. If you don't, you could have unplanned, expensive shutdowns. The answer rests on keeping an eye on certain signs of wear, changes in working temperature, and regular structural checks. Usually, a replacement is needed when visual checks show cracks that are bigger than what is allowed, when thermal imaging finds hotspots on the outer shell that show the refractory is thinning, or when energy use goes up noticeably because the insulation isn't as good as it used to be. Scheduling ahead of time based on these factors saves both your equipment investment and the continuity of your business.

Understanding Furnace Refractory Linings

Material Composition and Functional Roles

The refractory linings in blast furnaces, electric arc furnaces, and coking tools are made of designed materials that are very good at withstanding heat and being durable. High-alumina bricks, silicon carbide castables, magnesite-chrome alloys, and microporous carbon blocks are all common materials. Each one is picked for a certain range of temperatures and set of working conditions. These substances protect the steel shell from heat, keep the structure strong when falling charge materials put stress on it, and keep alkaline slags and reducing gases from attacking it chemically.

Matching the refractory qualities to the operating needs is part of the material selection process. For blast furnace hearths to work, materials must be able to withstand loads above 1700°C and have a minimum perceived porosity of below 15% so that molten iron can't get through. For electric arc furnace sidewalls, you need materials that can handle high radiating heat and quick changes in temperature. Knowing about these properties of materials helps engineering teams choose replacements that will last longer and work better in hot conditions.

Common Wear Mechanisms and Lifespan Factors

There are several ways that refractory can break down, and they depend on the furnace zone and working factors. Refractory materials are slowly broken down by chemical erosion from alkaline substances and carbon monoxide. Rapid changes in temperature cause thermal shock that makes microcracks that spread over time. Lining areas get worn down by mechanical impact from falling raw materials. In cold areas, alkali air seeps in and causes volume to expand and structures to break apart.

The expected length of a campaign depends a lot on how hard it is fought and how good the materials are. Blast furnace hearth linings made of fine microporous carbon blocks can last for 10 to 15 years if they are well taken care of. Because of the extreme temperature changes, electric arc furnace sides usually need to be replaced every 18 to 36 months. The linings of coking tools wear in different ways based on how often they are charged and how the temperature is managed. These standards serve as guides for making review plans and budgets for replacement projects.

Signs You Should Replace High Furnace Refractory Linings Now

Visual and Structural Warning Indicators

A physical inspection shows important warning signs that need repair teams' instant attention. Surface cracks show that the structure is under a lot of stress, especially when the cracks are wider than 5 mm or go through the top refractory layer. Discoloration on the furnace shell hints that some areas were overheated because the refractory below was worn down or broken. Shell plate deformation, even if it's just a little bulging, means that the refractory support has broken down enough to let the steel structure expand when it gets hot. When refractory chunks break off from the lining and can be seen, this is called spalling. It leaves holes that speed up further degradation through open areas.

During planned maintenance windows, inspection methods should include taking lots of pictures to record everything. When you look at pictures from different inspection rounds side by side, you can see degradation patterns that show when failure levels are getting close. Crack mapping is a way for structural engineers to figure out if the damage is just on the surface or if it has affected the structure's ability to hold weight. When obvious signs show that something is getting worse over time, replacing it before it breaks completely is the smart thing to do from an economic point of view.

Operational Performance Anomalies

Operational data for high furnace body lining replacement service gives us numbers that show the lining is breaking down before the visible damage gets too bad. Temperature tracking systems look for outliers that mean there are problems with the refractory: for example, if the top shell temperature goes over 50°C, it means that the insulation layers are becoming significantly thinner. Using more energy to keep temperatures at goal levels—sometimes 15% to 25% more than usual—shows that thermal efficiency has been weakened. Problems with production quality, like uneven coke strength or uneven load fall in the blast furnace, can be traced back to uneven thermal profiles caused by failures in certain areas of the lining.

Advanced monitoring tools make early identification better than just looking at something. During operation, infrared thermography finds hotspots that can't be seen with the naked eye, pointing out exact areas that need help. Ultrasonic thickness testing finds the leftover refractory depth without having to dig up the area, which lets choices about replacement be based on data. With these technologies, maintenance teams can switch from replacing lines based on the calendar to using condition-based tactics that make the best use of linings and improve operating safety.

Critical Risk Thresholds

There are times when you need to act right away, even if upkeep isn't planned. When shell temperatures go above the safe working limits, burn-through risks arise that put people and equipment nearby at risk. Sudden drops in performance, like uncontrollable temperature drops or uneven gas flow patterns, are signs of a structural failure that needs to be looked at right away. When safety tracking systems pick up on strange vibrations or sound emissions, they may be early warning signs of stubborn collapse. When these critical signs show up, continuing to run the business risks major failures that will cost a lot more to fix than the planned replacement costs.

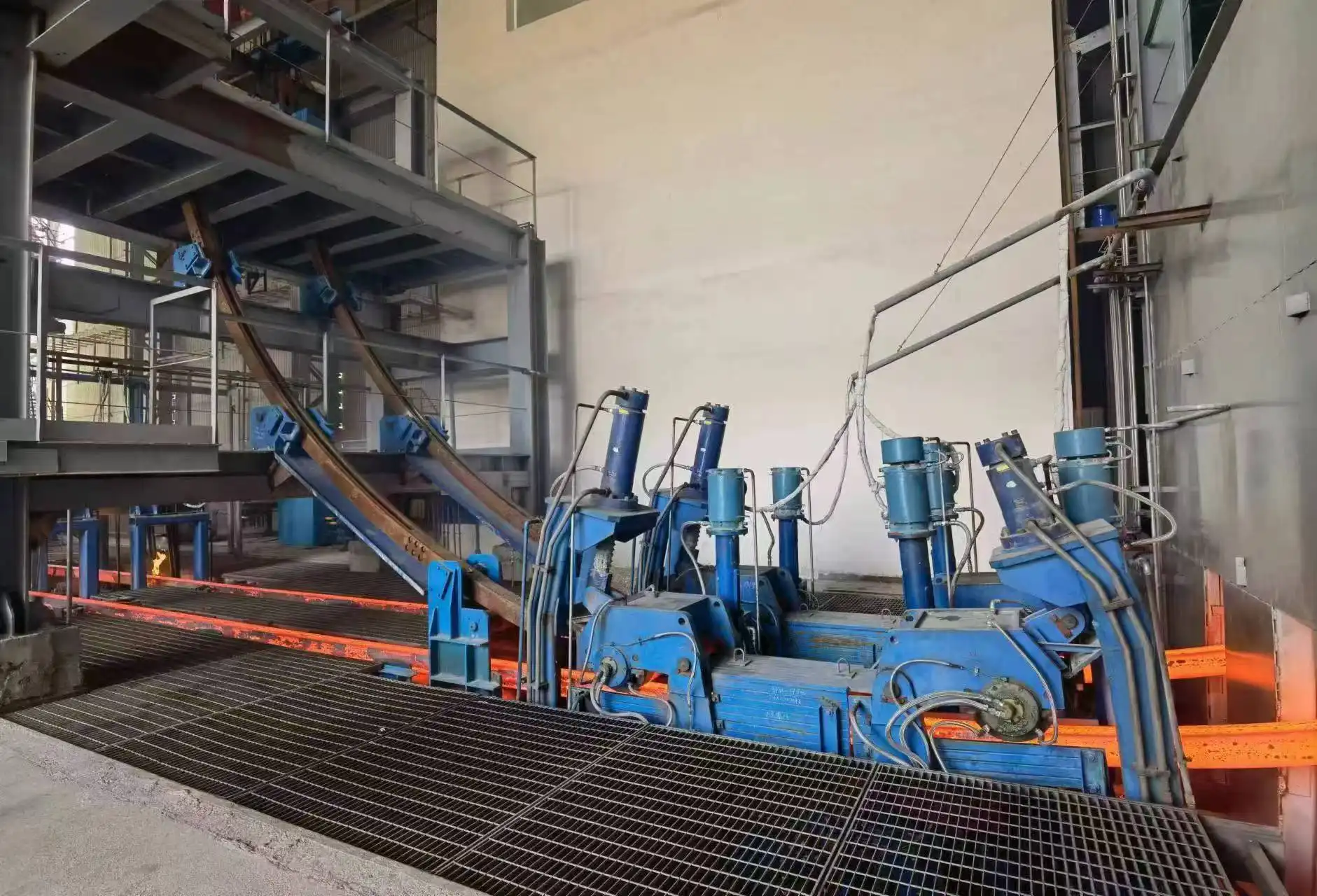

The Furnace Body Lining Replacement Process Explained

Pre-Replacement Planning and Shutdown Protocol

Replacement jobs that go well start with thorough planning that cuts down on downtime and guarantees good results. Engineering teams make thorough work plans that include how to tear things down, what materials to use, how to place them, and quality checkpoints. The people who work in procurement plan when materials will be delivered and make sure that all of the refractory parts, fastening systems, and bonding agents get there before the demolition starts. Shutdown steps include controlled cooling protocols that protect the surviving furnace structures from thermal shock damage. This process usually takes five to ten days, but it depends on the size of the vessel and the temperature at which it is working.

Realistic schedules that combine the need for production with the need for upkeep are set by working together with the operations teams. High-wear areas like the bosh and belly can usually be partially relined in 10 to 20 days, which means that output can resume more quickly. Full relining efforts that rebuild the hearth and stack usually take 45 to 90 days from the time the furnace is turned off until it is turned back on. Clear communication between areas keeps schedules from clashing and sets reasonable goals for planning output.

Demolition and Inspection Standards

Getting rid of old refractory needs special methods that protect the steel structures below and the nearby good materials. Robotic demolition systems make it possible to remove things precisely and safely in small areas, with little noise and risk to workers. High-pressure water pumps with abrasive chemicals remove only the refractory layers, protecting the cooling plates and anchoring systems from damage. For places that can't be reached by automatic equipment, demolition must still be done by hand with pneumatic tools, while strict safety rules are followed, such as wearing respirators and keeping an eye on the structure.

After the removal is done, a review gives important information for planning the installation. Before putting in a new lining, engineers check the uncovered steel plates for rust, deformation, or stress cracks that need to be fixed. Checks of the cooling system's soundness make sure that the water flow lines stay clear and there are no leaks. Dimensional scans using laser scanning technology record the real shape of the furnace. This lets you compare it to the original design specs and figure out what kind of material needs to be cut. This part of the check finds any secret damage that, if not fixed, could make the new lining less effective.

Installation and Quality Verification

Different installation methods for high furnace body lining replacement service are used depending on the material chosen and the needs of the heating zone. Precision bricklaying with high-alumina forms follows designed bond patterns that allow for thermal expansion while keeping the structure strong. When gunning, high-velocity gas equipment is used to castable refractories. The impact force of the equipment makes the materials denser, which gives them better physical traits. Plastic refractories can be pressed together using ramping methods to make complex shapes. These techniques work especially well for hearth and furnace uses that need smooth, solid structures.

Installing quality control measures throughout the whole process makes sure that the specifications are met and that the system works well for a long time. X-ray fluorescence testing of the raw material shows that its chemical makeup meets the design requirements. Ultrasonic thickness gauging and laser scanning are used for installation precision tracking to check that the dimensions are correct against engineering plans. The installed samples are tested for their physical properties, such as their cold crushing strength, constant linear change, and visible porosity. The results are compared to ASTM C113 and ISO 13765 standards. These steps of quality control provide written proof of quality that backs up performance promises and legal compliance.

Controlled Drying and Heat-Up Procedures

Newly fitted refractory needs to be carefully handled during the drying and heating up processes so that it doesn't fail too soon from moisture buildup. Controlled drying uses temperature steps that slowly release chemically bound and physically absorbed water without creating damaging steam pressure. PLC-controlled burner systems keep exact temperature profiles, usually rising by 25°C to 50°C per hour through important ranges for releasing moisture. Continuous tracking with calibrated thermocouples makes sure that all areas of the furnace are heated evenly. This stops thermal stress from uneven growth in some areas.

Depending on the thickness of the lining and the type of cloth used, the whole heat-up operation can take anywhere from seven to fourteen days. If you rush through this important step, you could cause spalling damage that weakens the whole system and might need expensive fixes or replacement before it's time. Following the drying curves provided by the maker carefully will protect your refractory investment and set up the best material qualities that will support a longer campaign life. By writing down the real temperature profiles during heat-up, you can use them as a guide for future projects and to address performance problems if they happen.

How to Choose the Right Furnace Lining Replacement Service?

Technical Capability Assessment Criteria

To find qualified service providers, you have to look at their professional skills, which have a direct effect on how the project turns out. Contractors with a lot of experience have shown they know how to work with the burner types and refractory systems that are important to your business. Their engineering teams should know a lot about temperature modeling, choosing the right materials for your working conditions, and installing things in a way that works with your equipment. Look at their past projects to see if the ones you're interested in are similar in size and difficulty, and look for proof of campaigns that worked in similar metalworking settings.

Technical skills include more than just installation; they also include full project management. Certified quality testers who know how to follow ASTM and ISO testing methods work for qualified providers. Their safety plans should meet or go beyond OSHA requirements and have a history of working without any problems. Modern workers use things like automatic demolition systems, precision gunning machines, and laser scanning technology to make the work better while cutting down on the time it takes to complete the job. These technical benefits directly lead to less downtime and better performance from the lining.

Material Options and Supply Chain Reliability

Choosing the right refractory material has a big effect on both the original cost of the project and its long-term economic viability. Reliable service providers have a wide range of materials, from basic shaped goods to complex monolithic systems, so you can get the best results for your unique chemical and heat environment. They have long-term partnerships with top refractory producers, which gives them access to materials that have a history of good performance and reliable quality. Full chemical studies, physical property data, and application directions that help people make smart decisions should be included in material approvals.

Reliability in the supply chain is important to keep project delays to a minimum and avoid expensive material shortages during installation. Contractors with strong buying systems keep enough inventory on hand and have backup source relationships to keep work from stopping when unexpected supply problems happen. They give clear information about where materials come from, so your purchasing team can check the materials' location, quality certifications, and compliance with requirements. This openness in the supply chain makes people more confident that projects will stay on schedule and quality standards will be met throughout the whole process.

Cost Structure and Value Proposition Analysis

The total cost of a job includes more than just the rates for materials and labor. Quotes that are complete should include costs for high furnace body lining replacement service removal, equipment hire, technical services, quality testing, and support after the installation. Clear price structures let you compare rival offers in a useful way, showing differences in scale that affect the total value. Be wary of prices that seem too good to be true but leave out important services or use cheap materials. The savings will disappear when quality problems arise or projects go over schedule.

When figuring out value, you have to look at both direct project costs and the effects of downtime. Contractors who can speed up schedules through better planning and performance may charge more, but they will give you more value overall by getting your heater back to work faster. Longer guarantees that cover both materials and work show that the builder trusts the quality and protect against premature failure. Instead of just looking at the original project costs, you should also look at the total cost of ownership over the expected campaign life. This will help you make the best decisions and find the true economic value.

Benefits of Timely Furnace Body Lining Replacement

Enhanced Operational Efficiency and Energy Performance

When worn refractory linings are replaced at the right times, heat efficiency and energy use go up by a measured amount. New layers of insulation bring back the thermal resistance that was intended, which stops heat from escaping through the furnace shells and lowers the amount of fuel needed to keep temperatures at goal levels. After extensive relining campaigns, steel mills say they save between 12% and 20% on energy costs, which adds up to big savings over long campaign times. Better temperature profiles make the process more stable, which leads to more regular product quality with fewer changes in its chemical or mechanical make-up.

Extended Equipment Lifespan and Reduced Emergency Repairs

Planning when to replace your capital equipment saves it by stopping damage from refractory systems that fail to fix themselves from spreading. When linings wear out beyond what is needed for functionality, uncovered steel plates rust quickly and deform, which needs expensive repairs. When cooling systems are affected by too much heat, they work less well and last less long. If you let refractory conditions get to a point where they could fail, maintenance projects that were once doable become huge rebuilding projects that cost a lot more.

Scheduling preventative maintenance gets rid of the need for emergency repairs that throw off production plans and put a strain on maintenance resources. Replacements are planned to happen during planned outages, when support services, supplies, and expert contractors are easy to get. For expedited service, extra work, and quickly obtaining materials, emergency repairs often require higher prices. The difference in cost between planned and emergency actions is usually between 200% and 400%. This makes condition-based replacement methods that act before failures happen a strong economic case.

Safety Enhancement and Regulatory Compliance

Keeping the purity of refractory directly supports safety at work by stopping dangerous situations that put people and buildings at risk. When linings become thin or fail, burning materials can break through and cause huge spills. This is called burn-through. Failures in the structure can cause temperature or pressure changes that can't be managed and could cause major harm. These risks are taken care of by proactive replacing, which shows that management is committed to a safety culture and keeps your company from being sued.

More and more, regulatory compliance requirements stress the importance of preventative upkeep and managing the integrity of assets. Environmental permits often list operating conditions, such as the highest temperature for the shell and the most pollution that can be released. These conditions depend on how well the refractory systems work. OSHA rules say that high-temperature industrial equipment needs to be inspected for hazards and risks must be reduced. Documented repair plans that show regular inspection, condition assessment, and replacement at the right time help show compliance during regulatory checks. Not keeping the refractory in good shape can lead to fines, violations, or limits on operations that hurt your business in ways that go beyond the cost of repairs.

Conclusion

To find the best time to repair high furnace refractory linings, you need to keep an eye on visual indicators, operational performance measures, and diagnostic data from advanced inspection technologies. By noticing early warning signs like surface cracks, strange shell temperature changes, and decreasing thermal efficiency, you can take action before major fails happen. Strategic replacement timing has real benefits, such as saving money on energy costs, making equipment last longer, lowering the cost of emergency repairs, and raising safety standards.

Working with experienced high furnace body lining replacement service providers who can show they have technical knowledge, material knowledge, and a track record of completing projects successfully will help you get the most out of your refractory investment. When replacements are done on time, the economic and practical benefits are much greater than the costs. This helps keep competitive performance high in tough metallurgical settings.

FAQ

How can I determine if my furnace lining is beyond repair?

For a full evaluation, both eye inspection and diagnostic tests are needed. When the structural integrity of refractory has been compromised so much that limited fixes can't make it safe to use again, it can't be fixed. Some specific signs are cracks that go through multiple layers of refractory material, a lot of spalling that covers more than 30% of the surface area in critical zones, or shell warping that shows the loss of structural support. When thermal imaging shows many hotspots spread out over large areas, it means that the material is thinning all over and needs to be replaced instead of just being fixed in a few places.

Which refractory materials offer the longest service life in high-temperature applications?

How long a material lasts depends on how well its qualities are matched to its intended use. Microporous carbon blocks last a very long time in blast furnace hearths—often 12 to 15 years—because they are better at transferring heat and resisting damage from acids. Silicon carbide-based castables work great in situations where they will be scraped and heated and cooled many times. When used in steelmaking settings with harsh slag corrosion, magnesium-chrome alloys work best. To get the best life, you should talk to refractory experts about how to match materials to your unique thermal profile, chemical environment, and mechanical stress conditions.

What methods can be used to keep production as steady as possible during repair projects?

When scheduling is done right, replacement times are coordinated with planned repair breaks for other equipment. This cuts down on downtime and keeps production from stopping multiple times. Partially relining methods that focus on high-wear areas allow for shorter outages than full replacement, which extends the life of the program as a whole through staged interventions. Using special gunning materials and hot repair methods, the machine can be fixed in specific areas during short maintenance times without having to be shut down completely. When a project is planned out carefully with specific work routines, pre-staged materials, and experienced workers, the real downtime lasts as little time as possible.

SMEC: Your Trusted Partner for Advanced High Furnace Body Lining Replacement Service

SMEC can help you with your furnace repair problems because they have a lot of experience with mining equipment and can do a lot of different kinds of engineering work. Based in Taiyuan, China's national energy and heavy chemical industry hub, we are a major maker and service provider of coking and metallurgical equipment. We know how important reliable refractory systems are for operational success. Our engineering team is made up of 30 senior engineers and 168 technical specialists. These people have both a lot of basic knowledge and a lot of real-world experience working in steel mills, coking plants, and chemical processing plants.

Our high furnace body lining replacement service includes full project management, from the initial assessment to help after the installation. We use high-tech testing tools, like infrared thermography and ultrasonic inspection systems, to correctly figure out what's wrong with refractory materials and come up with data-driven repair plans. Our material sourcing services give you access to high-quality refractory goods that are best for your specific working setting. Our installation teams complete projects that meet strict ASTM and ISO quality standards. Specification compliance is ensured by thorough quality verification processes that include testing materials and checking dimensions on-site.

Modern construction tools are kept up to date at SMEC's 23,000-square-meter manufacturing buildings, which help with both making equipment and completing refractory projects. The Large-scale Intelligent Coking Equipment Research Institute and the Shenzhen Research Branch are two of our long-standing research partners. They help us keep coming up with new ideas in heat management and materials technology. This technical background helps us come up with useful solutions that make campaigns last longer, use less energy, and make things safer for our customers.

As both a seller and a professional partner, SMEC can help you find the right replacement parts for your coking batteries, blast furnaces, or other specialized metalworking equipment. Email our engineering team at project@smec.cc to talk about your unique needs and get thorough technical ideas that are made to fit your business. Our full-service method covers the whole project lifecycle, so you have as little downtime as possible while getting the most out of your furnace's long-term performance and dependability.

References

Routschka, G., & Wuthnow, H. (2008). Handbook of Refractory Materials: Design, Properties, Testing. Vulkan-Verlag GmbH.

Schacht, C. (2004). Refractories Handbook. CRC Press, Marcel Dekker.

Lee, W. E., & Zhang, S. (2004). "Melt corrosion of oxide and oxide-carbon refractories." International Materials Reviews, 44(3), 77-104.

American Society for Testing and Materials. (2019). ASTM C113-19: Standard Test Method for Thermal Conductivity of Refractories by Hot Wire. ASTM International.

International Organization for Standardization. (2015). ISO 13765: Refractory materials - Classification of dense shaped refractory products. ISO Standards.

Das, S. K., Blanco, C., & Green, D. J. (2013). "Carbon-containing castables: Current state of the art." Refractories Applications and News, 18(1), 10-16.
