Lower Sealing Valve for Blast Furnace BLT Equipment: Structure, Function, and Applications

The lower sealing valve of the blast furnace BLT equipment is an important part of Bell-Less Top charging systems. It is designed to keep the furnace crown gas-tight while allowing controlled release of raw materials from the hopper into the distributor chute. This valve is placed under the material gate in a way that protects against high-pressure blast furnace gas. It stops catastrophic leaks, reduces dust emissions, and gets rid of the need for frequent downtime caused by sealing failures in high-abrasion, high-temperature environments.

Understanding the Lower Sealing Valve in Blast Furnace BLT Equipment

Modern ironmaking depends on being able to precisely control the pressure during the charging cycle. The lower sealing valve of the blast furnace BLT equipment watches over this very important process. When iron ore, coke, and flux need to go down into the furnace throat, this valve opens briefly but stays closed against the rising pressure of blast furnace gas, which can be more than 2.5 MPa in high-efficiency operations.

Operating Principles and Pressure Control Mechanisms

The valve works in sync with the upper sealing valve to make an airlock chamber that keeps the inside of the boiler from contacting the outside world. The top valve closes during the charging process to keep the hopper from coming into contact with the outside air. The lower sealing valve of the blast furnace BLT equipment then opens, letting material flow into the spinning receiver while it is protected from high temperatures and streams of rough particles. By doing things in this order, pressure changes that would otherwise hurt fuel efficiency and make more coke be used are avoided. Our SMEC engineering team has seen that sealing valves that work properly keep the top pressure of the furnace stable within ±0.02 MPa. This directly leads to better gas flow dynamics and lower energy use.

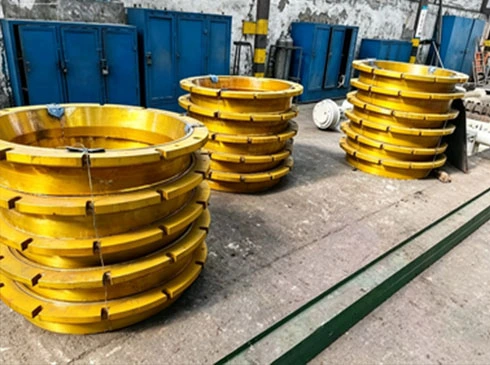

Key Structural Components and Materials

The valve assembly is made up of several carefully designed parts that work together. The valve body, which is usually made of high-strength steel metal, is what holds the valve together and lets you place it. The sealing ring, which is the most important part of the system, is made of special heat-resistant materials that can withstand temperatures above 400°C while still being flexible when loaded and unloaded over and over again. The closing force that presses the sealing element against the valve seat makes a gas-tight barrier. This force comes from hydraulic or air motors.

The choice of material is very important for durability in these tough circumstances. Advanced metal formulations are used by SMEC to protect against thermal fatigue, oxidation, and mechanical wear from gas streams carrying abrasive dust. The closing surfaces are carefully machined to within a few hundredths of a millimeter, which makes sure that the contact pressure is the same all the way around. This careful attention to manufacturing detail increases the time between major overhauls and lowers the total cost of ownership for steel producers.

Integration with Bell-Less Top Charging Systems

Position sensors, pressure transducers, and the central control system all work together with the valve to make the BLT system work as a whole. Predictive maintenance plans can be made by keeping an eye on the position of the valves, the hydraulic pressure, and the temperature of the sealing surface in real time. When normal operating parameters are departed from, automated alerts let operators know before small problems become major ones that stop production. This digital integration is a big step up from older charging systems that only had mechanical indicators to let you know how things were working.

Common Problems and Maintenance Tips for Lower Sealing Valves

Problems with the lower sealing valve of the blast furnace BLT equipment usually show up as gas leaks, sealing surfaces that wear out too quickly, or material buildup that stops the valve from closing all the way. Leaking gas not only wastes valuable flammable gas, but it also poses safety risks and causes problems with following environmental rules. Wear happens gradually due to thermal cycling and mechanical abrasion, while tars and fine particles that don't go through the upper chamber cause material to build up.

Preventive Maintenance Protocols

Setting up a structured maintenance schedule cuts down on unplanned downtime by a huge amount. During planned furnace maintenance windows, the state of the sealing surface, the stability of the hydraulic system, and the reaction times of the actuators should all be checked visually. Operators should keep an eye on the closing force needs—gradual rises can mean that there are problems with the flatness of the sealing surface or the buildup of material. Cleaning methods need to get rid of built-up deposits without hurting precisely cut surfaces, which requires special tools and trained workers.

Moving parts must be oiled according to strict schedules, using high-temperature greases made to resist carbon contamination. Analyzing hydraulic fluid can find early signs of seal wear in the actuator unit so it can be replaced before it fails completely. When the temperature of the valve body is tracked, it finds strange patterns of heat transfer that could mean that gas is getting around the sealing element inside the valve.

Case Study: Enhanced Reliability Through Advanced Design

Every eight months, a major integrated steel mill in the Midwest had to deal with costly emergency repairs and a drop in production because of a broken seal. After looking into the different ways the failure could happen, we found that the rubber parts could break down because the closing ring wasn't cooled down enough. SMEC changed the design of the valve body to include better cooling lines that kept the temperatures of the sealing elements below dangerous levels. After the change was made, it was more than 24 months before the seal had to be replaced again. This shows that engineering improvements have a direct effect on operational economics. The plant said that maintenance work hours were cut by 40% and that three unplanned outages were eliminated each year, which made production planning much more reliable.

Comparing Lower Sealing Valves: Choosing the Best Fit for Your Blast Furnace

Knowing the difference between the lower sealing valve of the blast furnace BLT equipment and the upper closing valve helps you understand how they work together. The upper valves keep the charging hopper from being affected by the outside world and can handle lower thermal loads. The lower valves, on the other hand, have to be able to handle being directly exposed to furnace gas and thermal radiation. This difference in function means that the lower valves need to be built with stronger materials and more durable construction, which affects both the original cost and the cost over their lifetime.

Performance Evaluation Criteria

When procurement teams compare valves from different manufacturers, they should look at a number of important factors. The most important thing to think about is how reliable the seals are under full boiler pressure. Valves that leak even a little can ruin the whole plan for controlling the pressure. Operational cycle life tells you how many times the valve can open and close before it needs a major repair. This directly affects when maintenance needs to be done and how many extra parts you need to keep on hand.

It's very important that the materials you use are compatible with the gas makeup in your stove. When furnaces process high-alkali ores, they release more corrosive gas streams that break down normal materials. Temperature resistance makes sure that the valve keeps its sealing integrity even when charging patterns and production rates change. Overall charging cycle length is affected by response time. Faster-acting valves allow for higher charging frequencies and better output.

SMEC valves have design traits that have been improved over many years of use in a wide range of ironmaking settings. Our sealing ring geometry improves the spread of contact pressure, which makes it last longer than the norm in the business. With redundant position feedback, the actuator systems provide precise control, making sure that they can work reliably even in tough conditions. Customer feedback always talks about how well our valves keep their tight seals over long campaigns. In fact, some installations go more than 30 months without needing major maintenance.

Selection Factors for Procurement Professionals

It takes a lot of research to find the right valve specifications for your furnace. Valve needs are affected by the furnace's working volume, top pressure, charging rate, and the properties of the raw material. Valves that lock better and move with more force are needed for bigger burners. For high-pressure operations, bodies need to be strengthened and sealing designs need to be improved. Compatibility with current control systems affects how hard it is to adopt and how long it takes to get it up and running.

Cost-effectiveness includes more than just the price of the product itself; it also includes the cost of installation, the availability of extra parts, and the need for long-term upkeep. Full warranty coverage shows that the manufacturer trusts the product's dependability. Access to technical support, especially for installations that are spread out across borders, makes sure that expert help is always available when operational questions come up. SMEC has a global service network with regional technical centers staffed by experienced engineers who know how things work in each area and can quickly respond to support requests.

Procurement Guide: Buying Lower Sealing Valves for Blast Furnace BLT Equipment

To find the lower sealing valve of the blast furnace BLT equipment, you need to follow a methodical process that combines technical needs, business concerns, and suppliers' abilities. If you work with well-known companies that make blast furnace equipment, you can be sure that the designs you get have been tried and tested in real life. Certification compliance, especially when it comes to pressure vessel standards and material traceability, keeps you safe from low-quality parts that could break early.

Supplier Selection and Qualification

When looking at possible suppliers, you need to look at their manufacturing skills, quality management systems, and technical support infrastructure. When you visit a production facility, you can see how precise the machines are, how thorough the inspections are, and how many engineering resources are available. Quality certifications like ISO 9001 show that the process is controlled in a planned way, while industry-specific certifications show that the company knows a lot about mining tools.

In Taiyuan, China's national energy and heavy chemical industry base, SMEC runs advanced manufacturing facilities that cover 23,000 square meters of specialized production space. We have 168 engineering and technical employees, and 30 of them are senior engineers. This gives us a lot of deep knowledge in both the planning and production processes. Our dedication to constant innovation is shown by the creation of our large-scale intelligent coking equipment research institute and Shenzhen research branch. Next-generation solutions are driven by active partnership between industry, education, and research.

Commercial Considerations and Support Services

Your maintenance planning and inventory strategies need to match up with delivery schedules. Standard valve setups usually ship within the time frames that have been set, but custom-engineered solutions need more time for engineering and production. Knowing these dates helps you plan your project well and keeps production running smoothly during installation. The warranty should cover problems with the material, the way it was put together, and how well it works under certain conditions.

Support after the sale is what sets top sellers apart from commodity providers. Access to expert advice during installation, help with setup, and ongoing operating support adds a lot of value on top of the equipment itself. Training programs that teach your maintenance staff the right way to service equipment make it last longer and work better. SMEC gives you a lot of information, like full care instructions, catalogues of spare parts, and troubleshooting guides, so your team can get the most out of the valves for as long as they're working.

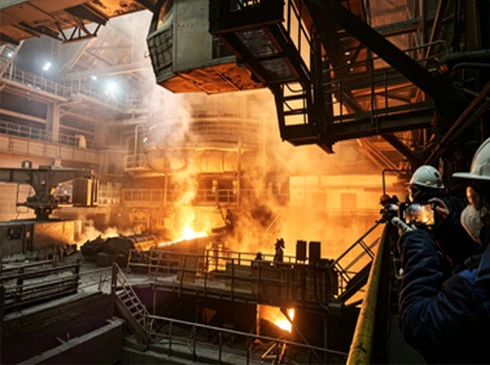

Applications and Future Trends of Lower Sealing Valves in Blast Furnace Technology

The lower sealing valve of the blast furnace BLT equipment is used in blast furnaces all over the world, in places as small as those that make 1,000 tonnes of steel per day and as big as those that make more than 5,000 tonnes per day. Because they can work with different kiln types and ways of doing things, they are essential to modern ironmaking. Applications can be found in a wide range of places, from the integrated mills of North America to the efficient operations in Asia, showing that they are useful everywhere.

Technological Advances Driving Performance Improvements

New ideas focus on making things last longer while requiring less maintenance. Advanced ceramic-matrix composite materials are more resistant to wear than standard metal closing surfaces. Computational fluid dynamics modeling finds the best ways for gas to move around the valve so that there is less turbulence, which can cause damage. Better designs for actuators allow for more accurate control while using less energy, which is in line with larger goals for sustainability.

State-based maintenance strategies can be used with sensor integration. These plan actions based on the real state of a component instead of set times. Temp sensors, vibration monitors, and sound emission detectors that are built in provide constant health assessment, finding problems as they arise before they affect production. With this ability to predict the future, maintenance goes from being a reactive crisis management to a proactive asset optimization.

Future Directions in Sealing Technology

Furnace charging equipment has changed over time because the steel industry wants to be carbon neutral and be more efficient. The next generation of valves will use smart materials that change based on the operating conditions and keep the best sealing force even when the temperature and pressure change. With digital twin technology, virtual commissioning and performance optimization can be done before the actual installation. This will cut down on startup times and speed up the start of production.

When integrated with the plant's automation systems, valve operation will be coordinated with the handling of materials upstream and the control of furnaces downstream. This will make the flow of materials from storage to melting smooth. SMEC is an active member of the industry working groups that are setting these new standards. This makes sure that our products stay on the cutting edge of technology. Because we've put money into research infrastructure and work with top universities, we can come up with new ways to solve problems that come up in the operation of blast furnaces.

Conclusion

A very important part of modern blast furnaces that is often overlooked is the lower sealing valve of the blast furnace BLT equipment. It makes the furnaces very reliable and efficient. The ability to keep the pressure stable while allowing controlled material release has a direct effect on how much fuel is used, how fast things are made, and how well the environment is treated. To choose the right valve, you need to carefully look at its design features, the quality of its materials, the skills of its seller, and its lifecycle support services. This important part of the steel industry will continue to change toward more automation and sustainability. It will use new materials and digital technologies that improve performance while making operations simpler. When you buy high-quality sealing valves from reputable companies like SMEC, they give you real benefits like longer service life, less maintenance, and more stable production.

FAQ

1. How often should lower sealing valves undergo major maintenance?

Maintenance times vary on how the valve is designed, how it is used, and the properties of the raw materials. In normal situations with proper operation, full overhauls happen every 18 to 24 months. Furnaces that work with abrasive materials or high pressure may need more frequent maintenance. Condition monitoring cuts down on interventions that aren't needed and stops failures that were not expected.

2. What indicators suggest valve replacement rather than repair?

Cracks in the valve body, severe erosion of sealing surfaces beyond machining tolerances, repeated seal failures despite proper care, and old designs missing modern safety features are all signs that the valve needs to be replaced. Gas leaks that get worse over time and can't be fixed by cleaning or replacing seals are also a sign that the valves need to be replaced completely for better long-term value.

3. Can SMEC customize lower sealing valves for specific furnace configurations?

Our engineering team often changes standard designs to fit specific installation needs, such as non-standard sizes, specific material needs, and the ability to work with existing control systems. Customization options range from small changes to measurements to completely new designs for odd working conditions. This makes sure that the product fits and works perfectly for your application.

Partner with SMEC for Superior Lower Sealing Valve Solutions

SMEC provides carefully designed lower sealing valves of the blast furnace BLT equipment options for blast furnace BLT equipment, along with a history of high-quality manufacturing and full technical support. As a top provider of the lower sealing valve of the blast furnace BLT equipment, we use cutting-edge materials, precise manufacturing, and decades of ironmaking experience to make parts that improve the reliability of your operations. Procurement managers, plant engineers, and EPC contractors looking for reliable solutions are welcome to contact our team. You can email us at project@smec.cc to talk about your needs, get detailed technical specifications, or get recommendations that are made just for your furnace. We guarantee consistent quality and on-time delivery because our factories are equipped with cutting-edge tools for production and testing. Visit smecltd.com to explore our complete product range and discover why leading steel producers worldwide trust SMEC for mission-critical blast furnace components that keep production running smoothly.
