How Does a Lower Sealing Valve Improve Blast Furnace Charging System Performance?

The lower sealing valve of the blast furnace BLT equipment completely changes how well the charging system works by keeping the gas-tight seal during high-pressure operations. This important part stops pressure loss, stops unplanned downtime from seal failures, and keeps top pressure control stable. All of these things are necessary for getting the best fuel economy and keeping production going. This valve has a direct effect on operating stability, environmental compliance, and the general costs of ironmaking processes in modern steel mills. It does this by providing a reliable barrier against blast furnace gas and allowing controlled material release.

Understanding the Role and Function of the Lower Sealing Valve in Blast Furnace BLT Equipment

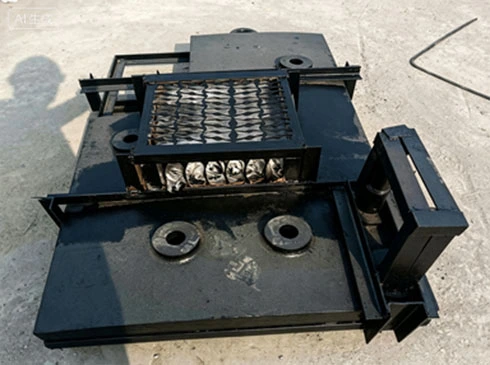

The Lower sealing valve of the blast furnace BLT equipment is an important part of the Bell-Less Top charging system, which is a big step forward in blast furnace technology. This valve, which is located below the material gate, is the main pressure barrier between the high-pressure furnace environment and the charging hopper above.

Why Gas-Tight Sealing Matters for Production Efficiency

One of the most expensive problems in blast furnace processes is gas leaks. When the sealing doesn't work right, the furnace loses its top pressure, which messes up the carefully balanced gas flow patterns that are needed to reduce iron efficiently. The modern lower sealing valve of the blast furnace BLT equipment solves this problem with special design features that keep the valves completely sealed even when the temperature changes a lot. The valve is usually made of high-strength, heat-resistant steel bodies and advanced sealing compounds, which are usually made of fluoro-rubber or silicon-based materials and are reinforced with stainless steel inserts. These materials can be exposed to temperatures between 250°C and 300°C for a long time without losing their flexibility or ability to seal. The end result is stable pressure control, which directly leads to less coke being used and higher production rates.

Mechanical Design Features That Enhance Reliability

The mechanical skill that went into making these valves goes beyond choosing the right materials. Rapid switching, which usually completes full cycles in 6–10 seconds, cuts down on the time that the furnace top is exposed while it is being charged. Self-cleaning sealing surface shapes stop the buildup of material that used to be a problem with older lower sealing valves of the blast furnace BLT equipment designs. This feature is especially useful when working with rough materials like sinter and coke, since dust building up on sealing surfaces can quickly hurt performance. Abrasive particles can't wear away at the hardened contact zones on the valve flap, which are usually treated to HRC 50–55 hardness levels. This makes the valve last longer and keep its precise closure.

Integration with Modern BLT Control Systems

These days, lower sealing valves of the blast furnace BLT equipment are an important part of automatic charging processes. The precise clamping force needed for gas-tight sealing is provided by hydraulic or pneumatic actuators. Position sensors confirm that the seal is complete before the charging cycle moves on to the next step. This integration makes sure that material release only happens when pressure differences are handled correctly, which keeps people and equipment safe. The valve's performance has a direct effect on how well dust control systems and gas recovery operations work. This makes it an important part of following environmental rules and collecting useful blast furnace gas for energy recovery uses.

Common Problems and Maintenance Strategies for Lower Sealing Valves in Blast Furnaces

When lower sealing valves of the blast furnace BLT equipment are used in harsh circumstances, they are subject to mechanical stress and wear patterns that require proactive repair methods. Knowing about these problems helps maintenance teams keep equipment from breaking down and save money on repairs.

Identifying Wear Patterns and Leakage Issues

The part of the lower sealing valve of the blast furnace BLT equipment system that is most likely to break is the closing ring. Continuously being exposed to changing temperatures, mechanical compression, and rough dust wears down sealing materials over time, allowing gas leaks to be detected. Early detection is very important because even small leaks can grow into big pressure losses that hurt the furnace's performance. Maintenance teams should set up regular inspection schedules that include looking at sealing surfaces visually for damage like scoring, cracking, or material breakdown. Gas tightness testing at 1.1 to 1.25 times the maximum working pressure gives a number that shows how well the seal is working, finding problems before they affect production.

Preventing Valve Sticking and Actuation Failures

One of the most common problems with the lower sealing valve of the blast furnace BLT equipment's closing surfaces is that they get clogged with material. When tiny particles stick to valve parts, they make physical barriers that stop the valve from closing all the way or make the sealing pressure spread out unevenly. These days, systems have scraper mechanisms or nitrogen purging systems that clean the sealing surfaces every cycle. Schedules for lubrication must take into account the high-temperature environment. Special high-temperature greases must be applied to pivot points and actuator parts to keep them running smoothly. Maintenance on hydraulic systems is just as important as maintenance on other systems because stable hydraulic pressure is what makes sealing work. Backup accumulators should be checked often to make sure they can keep their closing force when the pressure drops for a short time.

Structured Maintenance Protocols for Extended Service Life

Keeping accurate records of cycle counts, operating temperatures, and any strange things seen is the first step to doing good maintenance. Patterns in this data show that parts will need to be replaced before they break. Ultrasonic and magnetic particle inspection are two types of non-destructive testing that can find stress cracks or casting flaws inside the valve body that could cause it to fail catastrophically. The usual time between replacements for a sealing ring is between 12 and 24 months, but the real service life varies a lot on the material and how it is used. When it's time to replace something, dimensional verification with laser scanning makes sure that the new parts fit perfectly into the old valve seats. This keeps the valve seats from wearing out too quickly because they aren't lined up correctly.

Comparing Lower Sealing Valves with Other Sealing Solutions in Blast Furnace Charging Systems

In order to choose the best closing technology, you need to know how each method works in real-world situations. There are a lot of different kinds of furnace top equipment, but the lower sealing valve of the blast furnace BLT equipment is one of them.

Performance Characteristics Across Sealing Technologies

Traditional mechanical seals and gate valves are easier to build, but they don't work well in big blast furnaces because of the high temperatures and high pressures that happen there. Because they are made with special sealing compounds and have the best contact shape, lower sealing valves of the blast furnace BLT equipment designed for BLT systems keep gases out better. The clamping force from hydraulic actuators evens out the pressure across the sealing surface, which gets rid of the leak paths that form in simpler gate designs. Temperature tolerance is another important difference. Normal industrial valves may stop working or need cooling systems when temperatures get too high, but the lower sealing valve of the blast furnace BLT equipment keeps working in the normal temperature range.

Cost-Benefit Analysis for Long-Term Operations

Because they are made of better materials and have more complex engineering, installing an advanced lower sealing valve of the blast furnace BLT equipment usually costs more than installing simpler ones. This initial investment will pay off in the long run through less frequent maintenance, longer component life, and more reliable operation. Just avoiding unplanned downtime often makes the higher cost difference worth it, since each hour of blast furnace interruption costs a lot of money. Gains in energy efficiency from keeping the top pressure steady also boost economic returns. When plants try to be as productive as possible by using high top pressures, they find that having solid sealing technology has a direct effect on their ability to keep the best working conditions.

Evaluating Manufacturers and Supplier Capabilities

In this category of specialized equipment, differences in quality between suppliers are very noticeable. Manufacturers with a good reputation show that they follow ISO 9001 and metallurgical equipment standards like GB/T 25215. This guarantees that the mechanical properties and manufacturing precision will stay the same. Buyers should look at more than just certification when choosing a provider. They should also look at their technical help, especially how well they can do custom building for different furnace configurations. When it comes to tungsten carbide coatings, seal material formulations, and actuator sizing, only leading suppliers have the expertise that sets them apart from commodity manufacturers. The total cost of ownership over the life of the valve is also affected by the supply of spare parts and professional training programs.

How to Choose the Right Lower Sealing Valve for Your Blast Furnace BLT Equipment

When deciding what to buy for important furnace parts, you need to carefully compare the technical specs to the operational needs. There are several criteria used in the selection process that, when added together, indicate long-term success and worth.

Technical Specifications Aligned with Operating Conditions

Pressure rating is the most important standard. The lower sealing valve of the blast furnace BLT equipment must be able to keep closing properly at top pressures that may be higher than 0.3 MPa when it is working at high pressure. Temperature resistance needs to match the temperature environment, taking into account both constant working temperatures and possible temperature spikes during upset situations. It is important to look closely at the materials that make up both the valve body and the sealing elements. Standard industrial valves can't meet the needs of abrasive charging materials, which need hardened contact surfaces and coatings that don't wear down easily. The valve's cycle life should match how often it is charged. Facilities that charge at high rates need parts that have been through a lot of cycle testing, usually 500 or more continuous cycles during plant acceptance testing.

Customization Requirements for Retrofit Applications

When improving the lower sealing valve of the blast furnace BLT equipment technology, it can be hard to work with blast furnaces that are already in place. Whether standard products are enough or if special engineering is needed depends on how well the dimensions match up with the current BLT framework mounting points, material hopper interfaces, and actuator connection points. Cross-brand compatibility is rare because different brands use different designs. This is why precise dimension verification is so important. When retrofitting, it's very helpful to have suppliers who can 3D laser scan current systems and design custom solutions. When integrating with current control systems, it's important to keep in mind that sensor interfaces, hydraulic supply parameters, and safety interlocks can be different depending on the manufacturer and installation year.

Procurement Strategy and Building Partnerships with Suppliers

A successful buying process includes more than just meeting technical specifications. Delivery times must match up with planned repair windows, since replacing the lower sealing valve of the blast furnace BLT equipment usually means the boiler has to be shut down. Having sources who can provide quick replacement parts makes you less vulnerable to fails that come up out of the blue. Technical support during installation and commissioning keeps mistakes from being costly and makes sure that the system works at its best right away. Good documentation, like detailed maintenance manuals, lists of spare parts, and troubleshooting guides, helps your maintenance team keep equipment in good shape over time. Warranty terms and performance promises give you even more peace of mind, especially when you buy high-end tools from a company you don't know much about.

Future Trends and Innovations in Lower Sealing Valve Technology for Blast Furnaces

Manufacturers are continuing to improve the lower sealing valve of the blast furnace BLT equipment technology in response to requests from the industry for higher reliability, less upkeep, and better environmental performance. Several new trends look like they will change what people expect from this important category of equipment.

Advanced Materials Extending Service Intervals

As material science progresses, lower sealing valves of the blast furnace BLT equipment sealing compounds become much more resistant to wear and temperature changes. Next-generation fluoroelastomers keep their flexibility at higher temperatures and don't break down chemically when exposed to sulfur compounds and other contaminants that are common in blast furnaces. Composite sealing elements with ceramic support particles offer great resistance to wear without giving up the flexibility needed for good sealing. More and more, valve body materials are made of metals that were made to work at high temperatures. This reduces thermal stress breaking, which used to shorten the life of parts. These important improvements directly lead to longer maintenance intervals, which let facilities schedule valve service around planned major outages instead of having to fix problems as they happen.

Smart Valve Technology and Predictive Maintenance

When sensor technology is added to the lower sealing valve of the blast furnace BLT equipment's mechanical parts, they are turned into smart systems that can check on their own state. Embedded temperature sensors keep track of the heat exposure that breaks down seal materials, and position sensors pick up on small changes in the timing of closures that show mechanical problems are starting to appear. Monitoring the difference in pressure across the valve during filling cycles finds partial seal failures early on, before they cause problems with operation. This sensor data is used by predictive maintenance algorithms to figure out when parts need to be replaced based on how they are actually working, not on a set schedule of times. Real-time monitoring also lets you know right away if something isn't right, setting off alarms that let operators fix small problems before they become big problems. This lowers unplanned downtime, which is a big operational benefit for facilities that are competing on how reliable their production is.

Sustainability Benefits Through Improved Gas Management

Environmental laws are having a bigger impact on the choices people make about what tools to buy. The modern lower sealing valve of the blast furnace BLT equipment helps reduce emissions by letting all of the gas from the blast furnace be collected and used to make energy. With zero-leakage performance, the most gas is collected and can be used in hot blast stoves or top-pressure recovery turbine systems. This turns emissions into useful energy resources. Better sealing also cuts down on dust emissions from the furnace top, which helps facilities meet stricter particulate emission standards without having to buy extra control equipment. Stable top pressure control improves operating efficiency, which means less fuel is used per tonne of iron produced. This helps the company meet its sustainability goals and makes it more cost-competitive.

Conclusion

The lower sealing valve of the blast furnace BLT equipment does a lot more for the efficiency of the blast furnace charging system than just its technical job. This part has a direct effect on the economy of production because it changes how much fuel is used, how long the machine stays operating, and how much it costs to maintain. Ironmaking plants that want to get the most out of their operations know that investing in quality sealing technology pays off by using less coke, having less unexpected downtime, and making equipment last longer. The evolving technology landscape offers increasingly sophisticated solutions incorporating advanced materials and intelligent monitoring capabilities. By choosing providers with a track record of knowing a lot about metallurgical equipment, offering full technical support, and delivering products that work well, businesses can stay ahead of the competition in a field where dependability and speed are key to making money.

FAQ

1. How often should sealing rings be replaced in blast furnace lower sealing valves?

Depending on a number of factors, sealing rings should be replaced every 12 to 24 months. Operations processing highly abrasive materials experience accelerated wear compared to facilities charging less aggressive material mixes. Charging frequency directly impacts cycle counts collected during a given time period, affecting mechanical wear patterns. Temperature exposure also changes how quickly seals break down. Facilities that work at the highest temperatures see material wear out faster. Regular gas tightness testing gives accurate information about when replacements are needed instead of just using time-based plans.

2. What causes incomplete valve closure, and how can it be prevented?

Most of the time, incomplete The lower sealing valve of the blast furnace BLT equipment closure is caused by material buildup on sealing surfaces. Fine particles stuck to the valve flap or seat stop full contact by interfering with the physical flow. Modern valves have scraper mechanisms or nitrogen cleaning systems that clean the closing surfaces every time the valve is used. Hydraulic system problems can also make it impossible to apply enough clamping force. This can be avoided by keeping the hydraulic pressure at the right level and making sure the accumulator is fully charged. If sealing compounds get worn or damaged, they lose their flexibility and can't conform to mating surfaces as well. This means they need to be replaced soon.

3. Are lower sealing valves compatible across different BLT system manufacturers?

Direct interchangeability between manufacturers isn't common because each company has their own designs and sizes. Different brands usually have different flange connection patterns, actuator mounting interfaces, and valve envelope sizes overall. In retrofit situations, custom engineering is often needed to make valve assemblies fit into existing equipment. When replacing the lower sealing valve of the blast furnace BLT equipment from different manufacturers, it's important to work with suppliers who have experience with cross-brand retrofits and can offer dimensional verification services.

Partner with SMEC for Premium Blast Furnace Sealing Solutions

At SMEC, we know how important it is for blast furnaces to have reliable sealing technology. Our engineering team has decades of experience making lower sealing valves of the blast furnace BLT equipment that work well in the tough conditions of modern iron making. Our 68,700-square-meter facility is in Taiyuan City, which is the center of China's heavy industry base. It has advanced manufacturing capabilities and is staffed by 168 engineers, including 30 senior engineers who design metallurgical equipment. We set up the Large-scale Intelligent Coking Equipment Research Institute to keep coming up with new valve materials, sealing shapes, and technologies for integrating things.

SMEC offers full support throughout your buying journey, whether you run your own steel mill, work as an EPC contractor providing turnkey projects, or sell industrial equipment around the world. As part of our quality control procedures, we test for gas tightness, look at things without damaging them, and simulate a cycle life to make sure they work well before sending them out. We can customize services for retrofit applications, check dimensions using 3D scanning technology, and give you technical advice to make sure that the valve specifications you need work with the way your business works. As a top manufacturer of lower sealing valves of the blast furnace BLT equipment, we keep a large stock of spare parts and offer quick technical support to keep your operational risk to a minimum.

Get in touch with our team at project@smec.cc to talk about your blast furnace charging system needs and find out how our closing valve solutions can improve reliability, efficiency, and operating cost.
