Energy Losses Without Blast Furnace Heat Recovery

Blast furnaces lose a lot of heat when they don't have dedicated heat recovery infrastructure. They often release hot gases directly into the air, which is called flue gas, which can be anywhere from 280°C to 450°C. This untapped thermal potential is one of the biggest flaws in the steel business that can be fixed. The second most energy-intensive thermal source in ironmaking plants is the blast furnace hot blast system. A lot of medium- to high-grade industrial heat is lost through combustion exhaust, pipeline radiation losses, and stove changeover venting. The Waste Heat Recovery of Blast Furnace Hot Blast System technology stops these losses by taking sensible heat from flue gases that are released and using it to warm up fuel gas and combustion air. This lowers the need for coke, keeps blast temperatures stable and greatly reduces CO2 emissions. Without these kinds of systems, steel makers would have to pay more for fuel, extra energy, and furnaces that don't work as well, which would directly hurt their profits in today's carbon-conscious regulatory environment.

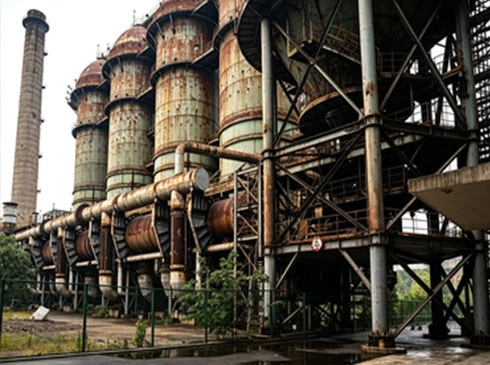

Understanding Energy Losses in Blast Furnace Hot Blast Systems

Unrecovered blast furnace operations have thermal inefficiencies that show up in three important ways that hurt the economics of ironmaking as a whole. A lot of useful heat is lost by hot blast stoves that don't recover it through their stack outputs. At the same time, they lose heat through large pipeline networks and release hot gases when the stove changes over. These separate ways of wasting energy lead to operating costs that go far beyond just using too much fuel.

Excessive Fuel Gas Consumption and Elevated Unit Costs

When air from the furnace and combustion air enter hot blast stoves at room temperature or close to room temperature, a lot more fuel has to be added to reach the desired blast temperatures. In order to keep standard hot blast delivery temperatures between 1,150°C and 1,250°C, facilities that don't preheat must use more blast furnace gas, coke oven gas or extra natural gas. This higher demand for fuel directly raises the amount of petrol needed to make one tonne of hot metal. This raises costs and makes the ironmaking process less thermally efficient overall. Plants often see their fuel use rise by 15 to 25 percent compared to sites that have the right heat recovery equipment.

Increased Auxiliary Energy Demand Across Plant Systems

People are losing heat through air streams that aren't being collected. This heat could be used for a variety of extra heating tasks in the integrated steel plant. If steel makers don't capture this heat for use throughout the plant, like heating rooms, drying out raw materials, preheating softened water, or preparing deionised water, they have to use separate boiler systems that use more coal or electricity to make steam and hot water. This extra energy production makes running the plant more expensive and increases its overall carbon footprint. This is a big problem as rules for tracking energy use and carbon accounting get stricter in the global steel market.

Constrained Blast Temperatures and Elevated Coke Rates

When used in non-preheated combustion conditions, hot blast stoves can't safely give the highest blast temperature that they can. When furnaces can't reach temperatures above 1,250°C because the burning isn't working well enough, the lower hot blast temperatures slow down chemical reactions inside the furnace. Because of the limited heat, operators have to add more coke to keep up with output and iron quality goals. This raises the cost of raw materials and shortens the life of the furnace operation. Because blast temperature and coke use are linked, there is a vicious cycle where thermal inefficiency in the hot blast system hurts the economics and stability of the blast furnace.

Besides these main ways of loss, high-temperature exhaust gases that aren't collected put extra stress on equipment that controls the environment further down the line. High temperatures in flue gas speed up the breakdown of dust collection filter media, make desulfurization systems wear out faster, and put more thermal stress on ducts and emission control infrastructure. This means that upkeep needs to be done more often and more parts need to be replaced. This adds up to secret costs that make investing in complete heat recovery solutions even more worthwhile.

Principles and Technologies of Waste Heat Recovery in Blast Furnace Hot Blast Systems

Heat recovery technology takes heat from exhaust streams and uses it to warm up incoming fuels for combustion. This makes hot blast stove operations much more thermodynamically efficient. Modern recovery systems usually use advanced heat exchanger designs that are made to work with the tough, dusty and sometimes toxic environment of blast furnace waste gases. By understanding the basic principles of thermal mechanics and the different technologies that are out there, you can make smart choices about what to buy that are in line with your specific practical needs and the limitations of your current infrastructure.

Core Thermodynamic Principles Driving Recovery Efficiency

The main idea behind the Waste Heat Recovery of Blast Furnace Hot Blast System is to take sensible heat from hot flue gases before they leave the stack and use that energy to warm up the fuel gas and combustion air that come into the hot blast stove burners. This method of double-preheating boosts the initial temperature of burning, which means less extra fuel is needed to reach the desired blast temperatures. Plate-type heat exchangers and heat pipes have become popular options because they are good at moving heat, keep their temperature stable, and are built in a way that makes them easy to add to current systems. Heat exchange values of 70% to 80% are common for good applications. This means that a lot of thermal energy that would have been lost is recovered.

Heat Exchanger Technologies and Integration Strategies

Different operational situations need heat exchangers that are set up in specific ways. Heat pipe exchanges have very high thermal transfer rates and very little temperature difference, which makes them perfect for situations where room or vibration issues limit other choices. When paired with automated soot blowing systems, their sealed, maintenance-free design works consistently in places with modest dust loads. Plate-type recuperators have a high surface area density and can be set up for both gas-to-gas and gas-to-liquid applications. This means they can be used in a wider range of plant integration scenarios, such as to make steam or hot water for other processes. Even though regenerative heat exchangers aren't used as much in new installs, they can still be used in some large-scale situations where their cyclical operation fits with the way stoves shift.

For integration to work, the waste gas velocity needs to be carefully managed. Flow rates should usually be kept between 8 and 12 m/s to balance how well heat is transferred against the pressure drop costs. Acid dew point safety must be built into systems through minimum wall temperature controls. This stops sulphuric acid mist that would quickly damage heat exchange surfaces. When working with high-sulfur flue gases, like in a blast furnace, it's important to choose the right materials. Specialised alloys that are resistant to acid or protective coatings can help things last longer.

Benefits of Implementing Waste Heat Recovery in Blast Furnaces

Installing complete heat recovery infrastructure leads to measurable changes in the amount of fuel used, the performance of the environment, and the life of equipment, all of which generate strong economic returns. The benefits can be measured and go beyond just saving energy. They also include better compliance with regulations, more stable operations, and a better position in markets that are becoming more focused on carbon intensity metrics.

Cutting down on fuel use is the most obvious and important benefit. Double-preheating systems, in which both the combustion air and the fuel gas are heated up first, usually cut the amount of specific fuel gas needed by 5 to 15 kg of coke equivalent per tonne of hot metal made. This saves enough fuel each year to usually pay for the project's initial costs within 12 to 24 months. At the same time, recovered heat raises the blast temperature by 100°C to 200°C. This lets furnace workers lower the amount of coke used by making the blast furnace itself more thermally efficient, which saves money all along the ironmaking value chain.

As carbon pricing mechanisms and emission intensity regulations get stricter around the world, the benefits of environmental compliance have become more valuable. Heat recovery systems lower CO2 emissions directly in proportion to how much fuel they save. They also lower SOx and particulate matter emissions by lowering the total amount of fuel burnt. Reducing emissions helps companies follow the rules, lowers their risk of having to pay carbon taxes, and boosts their reputation for being environmentally friendly. These are all very important things for integrated steel producers that supply strict carbon requirements to auto, construction, and appliance manufacturers.

There are several ways to make equipment last longer. Less fuel use lowers the thermal cycling stress on hot blast stove refractories, which extends the life of campaigns and cuts down on maintenance downtime. Lower flue gas temperatures that enter downstream environmental control equipment make bag filters, electrostatic precipitators, and induced draft fans less stressed by heat, which means they need less maintenance and fewer replacement parts. After putting heat recovery into place, plants say their environmental system maintenance costs go down by 15–25%. This adds value on top of the straight fuel saves.

Challenges and Solutions in Deploying Waste Heat Recovery Systems

While there are clear benefits, putting in the Waste Heat Recovery of Blast Furnace Hot Blast System comes with a number of real issues that need to be dealt with ahead of time. These include the difficulty of technical integration, the management of corrosion, limited cash allocation, and the timing of implementation. Knowing about these problems and tried-and-true solutions helps buying teams and plant engineers make realistic execution plans that increase the chances of success while lowering the risk of the project.

Corrosion and Fouling Management in Harsh Environments

Blast furnace waste gases have sulphur compounds in them that turn into sulphuric acid when cooled below their dew point temperature, which is usually between 120°C and 150°C based on how much sulphur is in the gas and how much water is in it. When temperature control isn't good enough, acids quickly attack the surfaces of heat exchangers, which drastically shortens the life of the equipment. Minimum wall temperature tracking and control systems that change the rate of heat extraction to keep surfaces safely above dew point limits are used in successful installations. Choice of material is also very important. ND steel, special coatings, and acid-resistant alloys all last longer in corrosive environments, but they cost more at first but pay for themselves by reducing the number of times they need to be replaced.

When dust builds up on surfaces that move heat, thermal performance goes down and pressure drop goes up. If this is not handled, operations could be slowed down or stopped altogether. Automated soot blowing systems that use steam or compressed air keep the surface clean, and the right tube pitch spacing (usually 80–120 mm) keeps ash from crossing between elements. Modern setups use acoustic cleaning technology, which uses low-frequency sound waves to keep getting rid of particle buildup while the system is still running.

Capital Investment Optimization and Phased Implementation

The upfront costs of comprehensive heat recovery systems can make it hard to get a project approved, especially when competing with other budget-constrained capital improvement plans. A thorough lifecycle cost analysis that measures the amount of money saved on fuel, the value of lowering emissions, the drop in upkeep costs, and the rise in productivity helps to support investment by showing quick payback and a higher internal rate of return than other projects. In unstable energy markets, business cases are stronger when sensitivity analyses show success across different fuel cost scenarios.

Phased implementation strategies lower the amount of money that needs to be spent at the start while delivering small benefits that build support within the company for future growth. Plants can start by preheating only the combustion air and save 60–70% of the total amount that could be saved. If budgets allow, they can then add fuel gas preheating during later turnarounds. Staged growth is easier with modular heat exchanger designs because they let you add capacity without affecting current equipment. This lowers the risk of implementation and keeps production running as smoothly as possible during installation.

Case Studies and Industry Insights

Leading global steel producers have shown that implementing advanced heat recovery has led to big improvements in performance. This shows that the benefits are real and gives useful information for specifying systems. These real-life examples show that recovery technology works at different operating scales and furnace setups. They also show how new trends are shaping future development.

During a planned repair break, a 3,800 m³ blast furnace in the European Union added heat pipe-based recovery exchangers. This made the heat exchange 78% more efficient and raised the temperature of the combustion air by 185°C. The addition raised the average blast temperature from 1,210°C to 1,280°C and cut the amount of specific blast furnace gas needed by 12 kg per tonne of hot metal. The combined savings on fuel and the lower coke rate paid for the whole project within 18 months, which was longer than expected. Notably, the plant reported 22% lower upkeep costs on dust collection systems because of lower flue gas amounts and temperatures. This was an unintended benefit of the project that wasn't part of the original reasoning.

Asian steel mills with multiple blast furnaces were the first to use smart energy management integration for the Waste Heat Recovery of Blast Furnace Hot Blast System, which changes the way the heat recovery system works based on the demand for fuel, the price of power, and the supply of fuel. Predictive maintenance algorithms look at shaking patterns, pressure differences, and temperature profiles to figure out exactly when cleaning needs to be done. This way, maintenance isn't done too soon and performance doesn't go down because action was put off. These digital improvements show that smart control systems that increase availability and efficiency can make standard thermal recovery gear more valuable.

New developments in the science of materials promise even better performance. Advanced ceramic composite heat exchangers can handle bigger differences in temperature and don't rust even without protection coats. This could lower the costs of both installation and upkeep. Additive manufacturing techniques make it possible to create complex internal geometries that improve heat transfer while minimising pressure drop. This is especially helpful in retrofit applications with limited space where traditional designs have trouble meeting performance goals.

Conclusion

Lack of recovery of energy from blast furnace hot blast systems causes big inefficiencies that can be fixed. These inefficiencies directly hurt ironmaking profits by using too much fuel, needing more extra energy, and limiting operating performance. Modern heat recovery technologies take this outgoing thermal energy and put it to good use. This saves 5 to 15 kg of coke equivalent per tonne of hot metal, raises blast temperatures by 100 to 200°C, and makes environmental control systems easier to maintain. When you add together stricter carbon rules, changing energy prices, and pressure from competitors to cut costs, heat recovery becomes more and more necessary instead of optional. Facilities that take action to fix these temperature inefficiencies will be better able to adapt to changing market conditions and will also see quick financial gains that usually pay for themselves in 12 to 24 months.

FAQ

What fuel savings can realistically be achieved through heat recovery implementation?

When systems are set up and run correctly, they can cut the amount of specific fuel gas needed by 5 to 15 kg of coke equivalent per tonne of hot metal created. The exact amount of money saved depends on how efficient the system is to begin with, how the recovery system is built, and how well it is run. When compared to air-only systems, double-preheating configurations that warm both the combustion air and the fuel gas work better.

How do you prevent acid corrosion in heat exchanger surfaces?

Controlling the minimum wall temperature so that surfaces stay above the dew point of sulphuric acid (usually 120°C to 150°C) and choosing the right materials, such as ND steel, coatings, or acid-resistant alloys, are key to managing corrosion well. Automatic control systems keep an eye on the temperature all the time and change the heat drainage rates as needed to keep the working conditions safe.

Can existing blast furnace operations be retrofitted without extended downtime?

Installation of modular heat exchangers can happen during planned repair breaks. The process usually takes two to four weeks, but it depends on the complexity of the setup and the conditions at the site. Phased implementation strategies let you put parts of the system over shorter periods of time, so you can start seeing benefits right away while delaying the full buildout until after repair windows.

What effects do recycling devices have on the flow of flue gas in terms of pressure drop?

With the right size and aerodynamic design, well-engineered systems keep pressure drop to 500 Pa or less. When the current forced draft capacity isn't enough, extra fans can be added to keep the waste gas flow at its best without affecting the draft or the performance of the environmental control system.

Partner with SMEC for Advanced Blast Furnace Heat Recovery Solutions

SMEC has more than 20 years of experience as an expert engineer in metallurgical thermal systems. They can help steel producers stop wasting energy and save a lot of money by using proven Waste Heat Recovery of Blast Furnace Hot Blast System technology. As a major manufacturer with its headquarters in Taiyuan, China's most important heavy industry hub, we have advanced research and development (R&D) skills and a strong manufacturing infrastructure that includes 68,700 square meters of production facilities staffed by 168 engineering pros. Our modular heat exchanger options work well with current blast furnaces and can recover 70–80% of the heat they generate with little downtime during installation. Whether you're looking to add capacity in a greenfield area or improve efficiency in a brownfield area, our expert team can help you with everything from the initial thermal study to installation and long-term optimisation. Contact our experts at project@smec.cc right away to talk about how our low-cost solutions can help you use less fuel, put out less pollution, and become more competitive as a Waste Heat Recovery of Blast Furnace Hot Blast System provider that cares about your long-term success.
